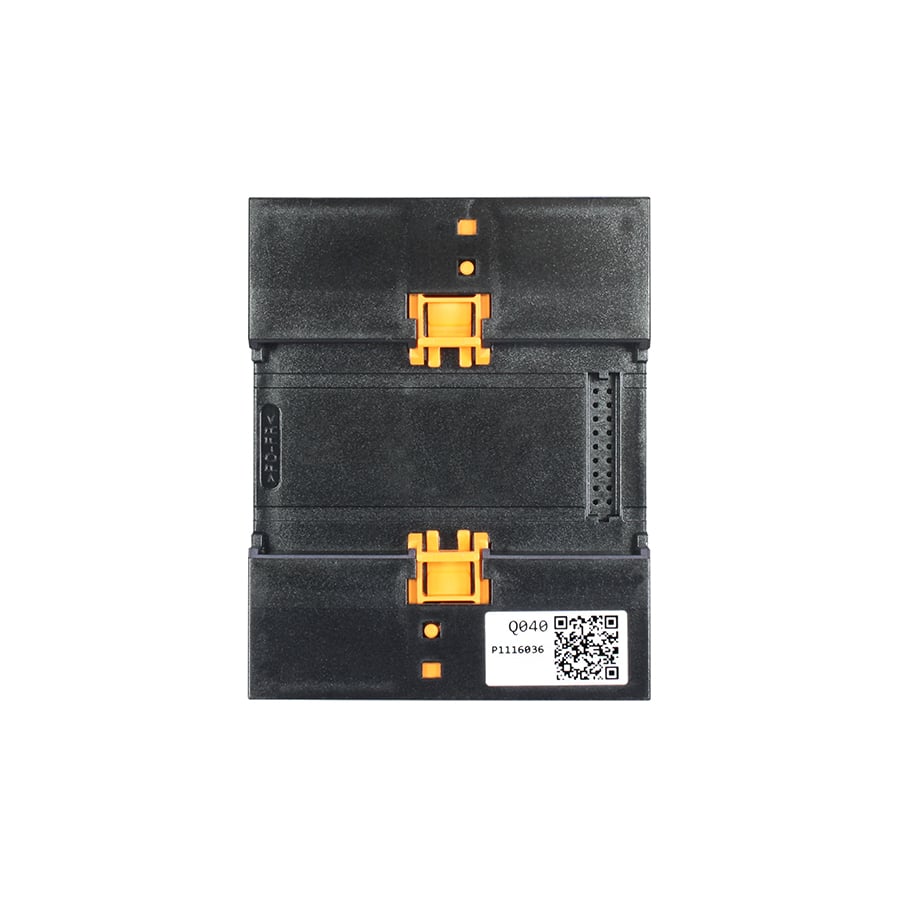

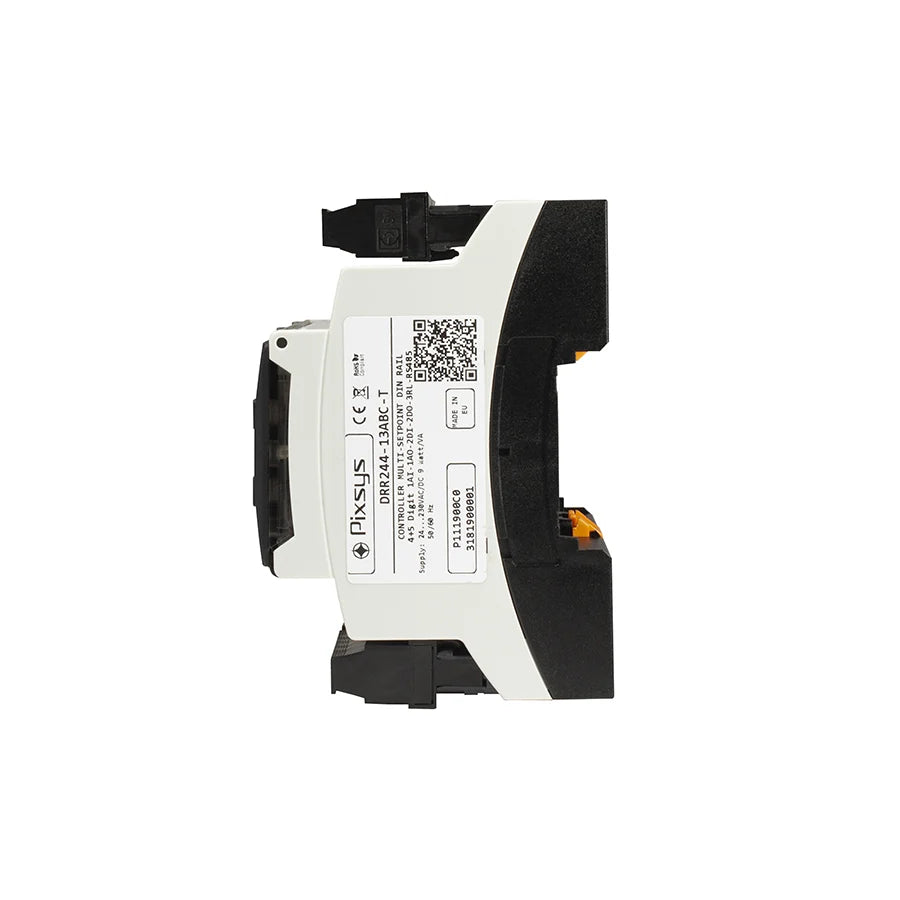

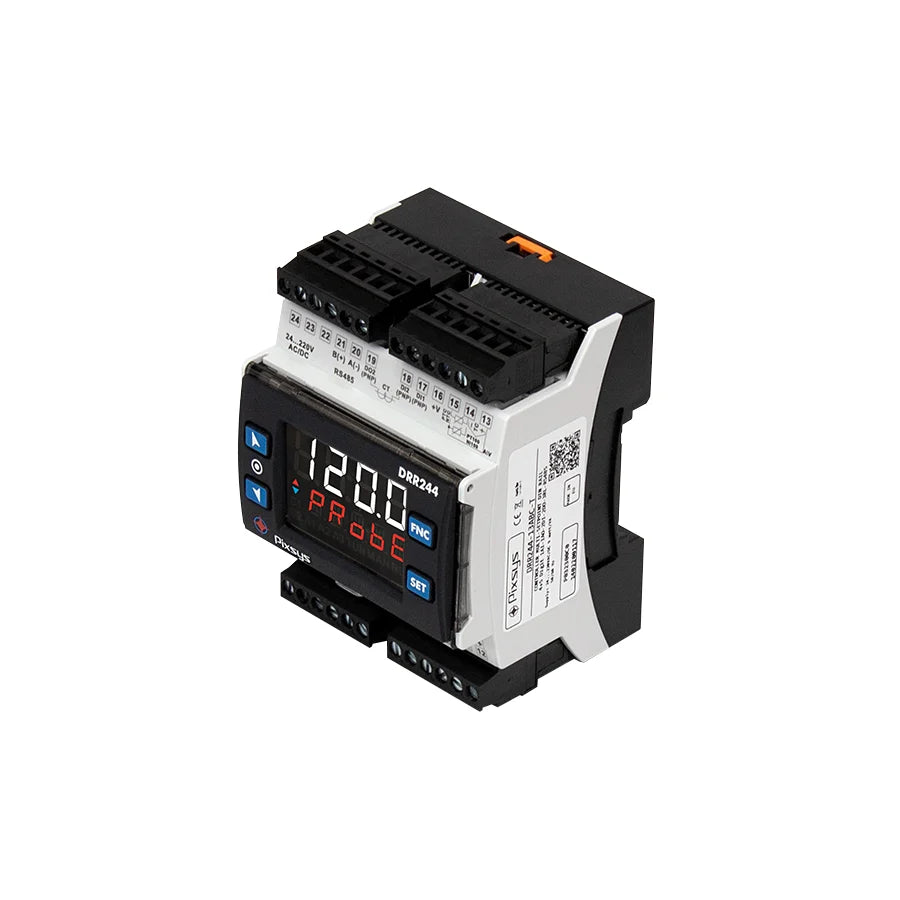

Pixsys DRR244-13ABC-T| DIN Rail PID Controller

Pixsys DRR244-13ABC-T| DIN Rail PID Controller

$410.30
$410.30
Sale Sold out
Tax included.
P/N: DRR244-13ABC-T
TRIPLE-SETPOINT DIN RAIL CONTROLLER 4+5 digit 1AI-1AO-2DI-2DO 3RELAIS+RS485
PID Controller DRR244 stands out in the DIN-rail controller segment thanks to its comprehensive hardware and software features  resulting  in a single order code.

The analog input is programmable for temperature sensors such as resistance thermometers and thermocouples, or for current/voltage process signals frequently used by pressure transmitters, humidity and flow sensors or  inverters.

The outputs are selectable as command , multiple alarm modes or analogue retransmission.

For applications within networks the serial port is RS485 with Modbus RTU/ Slave protocol.

The extended range power supply from 24 to 230V AC/DC with galvanic isolation makes it suitable even in case of oscillation in the power grid.

In addition to its function as a hot-cold PID controller, DRR244 also finds application as a signal converter due to the availability of analog output galvanically isolated from the input, which can be used for retransmission of process value or setpoint .

Like the other models in the Blue Line series, DRR244 is programmable with MyPixsys App via NFC/RFID communication.

ORDERING CODES

 DRR244-13ABC-T
Power supply

224..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV

Power consumption

9 Watt/VA

Display

White display 4 digits 0,5" + red 5 digits 0,3"

Analogue inputs

1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction-25..85°C, ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K), process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potenziometer 1..150 KΩ (50000 points)

Sampling time

Programmable up to 2,1 ms (frequency up to 470 Hz)

TA Input

1x T.A. 50 mA, 800 μs - 4096 points

Digital inputs

2 x PNP

Digital outputs

2x 12 / 24 V DC - 30 mA max

Auxiliary outputs

12/24 VDC - 30mA max for sensor supply

Relais outputs

2x 5A - 250VAC resistive loads, 1x 2A - 250VAC resistive loads

Analogue outputs

1 Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) for command and retransmission PV / SPV

Serial communication

RS485 (1200..115200 Baud) galvanically isolated

USB

1 x micro USB for programming via PC with LabSoftView
