Trumeter - Digital Panel Meter - Frequency
Trumeter - Digital Panel Meter - Frequency
Couldn't load pickup availability

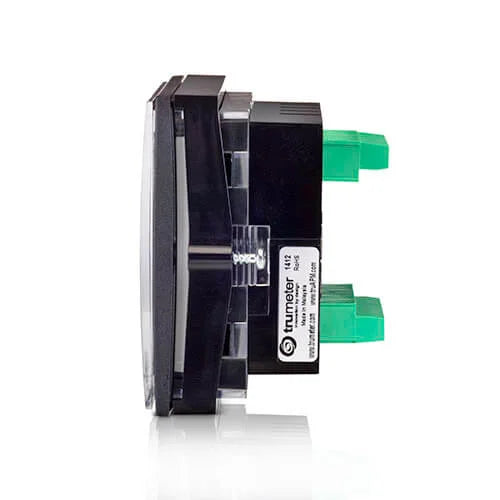

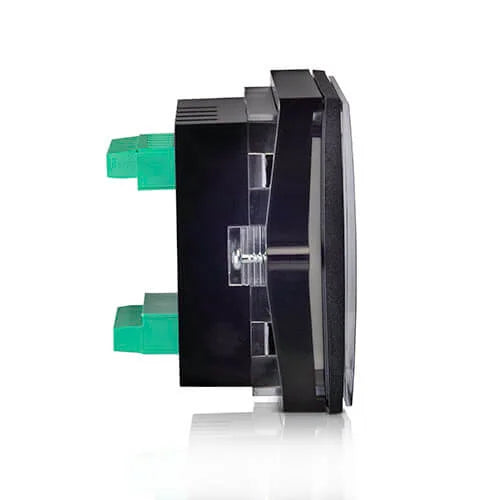

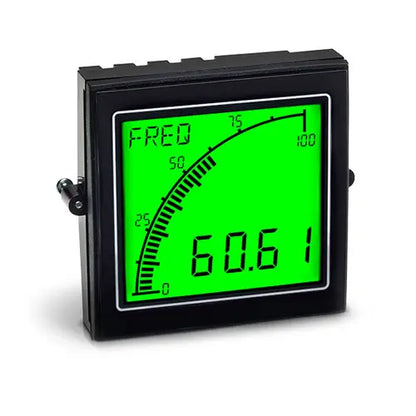

Frequency Meter
APM-FREQ-APO – positive LCD, with outputs
A specialized frequency meter for measuring frequency and speed
The APM Frequency Meter is a specialized frequency meter for measuring frequency and speed. It’s used in applications including marine, leisure and material handling.
Benefits include:
Accurately measures DC pulses from a sensor
Supports a wide range of inputs between 2-400Hz
0.5% accuracy at 25C
20 point non-linearization scaling (for non-linear sensors)
10 alarm setpoints & configurable digital output delay
*NEW* Remote monitoring with Trumeter Cloud and IOT Gateway
Specifications
| APM Input |
2 – 400Hz |
|---|---|
| PSU |
12 – 24V AC/DC |
| Outputs |
Output 1: Digital (open collector) or Analog (4-20mA), Output 2: Digital (open collector) or Analog (4-20mA) |
| Communication |
Modbus RTU Optional |
| Dimensions |
72mm x 72mm x 53mm |
| Screen Size |
57mm x 53mm |
| Accuracy |
0.5% |
| Certifications |
CE, cUL, IP65, NEMA Type 4 & 12 (UL50), ROHS, UL |
Part Numbers
APM-FREQ-ANO – negative LCD, with outputs
024569-01 APM Evaluation Kit
By Request: Modbus Connectivity
APM-FREQ-APS – positive LCD, with Modbus
APM-FREQ-ANS – negative LCD, with Modbus
