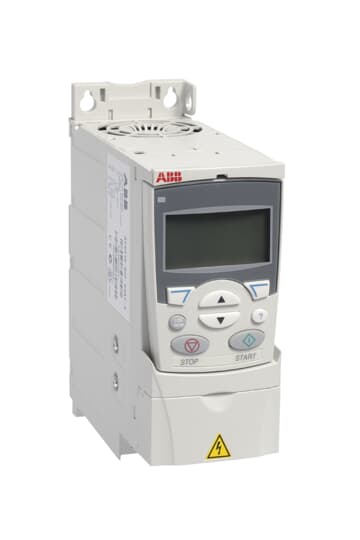

ABB ACS310 0.75KW 4.7A IP20 1PH PUMP & FAN DRIVE W/O CP ACS310-01E-04A7-2

ABB ACS310 0.75KW 4.7A IP20 1PH PUMP & FAN DRIVE W/O CP ACS310-01E-04A7-2

$534.88
$534.88
Sale Sold out
Tax included.

 The ACS310 drives are designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful and beneficial set of features designed for pump and fan applications. These features include built-in PID controllers and pump and fan control (PFC) that varies the drive’s performance in response to changes in pressure, flow or other external data.

Product Data | Product Catalog

Technical Specifications

Brand ABB
Application Domestic & Commercial
Communication Protocol MODBUS
Contains PC Connection
Dimensions (mm) 215W x 130H x 342D
EAN 6438177272618
Input Voltage AC (V) 200 - 240
Maximum Output Frequency (Hz) 500
Maximum Output Voltage AC (V) 240
No. of Analogue Inputs 2
No. of Analogue Outputs 1
No. of Digital Inputs 5
No. of Digital Outputs 1
Nominal Output Current (A) 4.7
Number of Other HW Interfaces 1
Number of RS-232 Interfaces 1
Number of RS-485 Interfaces 1
Output Power - Normal Duty (kW) 0.75
Relative Symmetric Net Frequency Tolerance 5%
Relative Symmetric Net Voltage Tolerance 10%
